Defining Kernels

A number of kernels are pre-defined in smolgp, such as the exponential kernel, the Matérn family, and the stochastic harmonic oscillator. Let’s take a look at some of these to see their covariance structure (and, equivalently, their power spectral densities). First, we define a few functions for plotting:

dts = jnp.linspace(0, 600, 500)
w = jnp.linspace(0, 0.2, 500)

def plot_psd(kssm, ax=None, color='k', **kwargs):
    S = kssm.psd(w)
    if ax is None:
        fig, ax = plt.subplots(figsize=(8, 2))
    ax.plot(w, S, color=color, lw=3, **kwargs)
    ax.set(xlabel=r'$\omega$ [rad/s]', ylabel=r'$S(\omega)$');

def plot_cov(kernel, ax=None, **kwargs):
    zeros = jnp.zeros_like(dts)
    cov = kernel(zeros, dts)[0,:]
    if ax is None:
        fig, ax = plt.subplots(figsize=(8, 2))
    ax.plot(dts, cov, **kwargs)
    ax.set(xlabel=r'$\Delta$ [s]', ylabel=r'$k(\Delta)$', xlim=(dts.min(), dts.max()));

def plot_psd_and_cov(kssm, kqsm=None, name='Kernel', axes=None, label=None):
    if axes is None:
        fig, axes = plt.subplots(1,2, figsize=(12,4))
        fig.suptitle(name)
    else:
        fig = axes[0].get_figure()
    plot_psd(kssm, ax=axes[0])
    plot_cov(kssm, ax=axes[1], color='purple', label=r'$k_{SSM}(\Delta)$' if label is None else label)
    if kqsm is not None:
        label = 'QSM' if isinstance(kqsm, tinygp.kernels.quasisep.Quasisep) else 'Dense'
        plot_cov(kqsm, ax=axes[1], color='green', label=r'$k_{' + label + '}(\Delta)$', ls='--')
    axes[1].legend(loc='upper right')
    return fig, axes

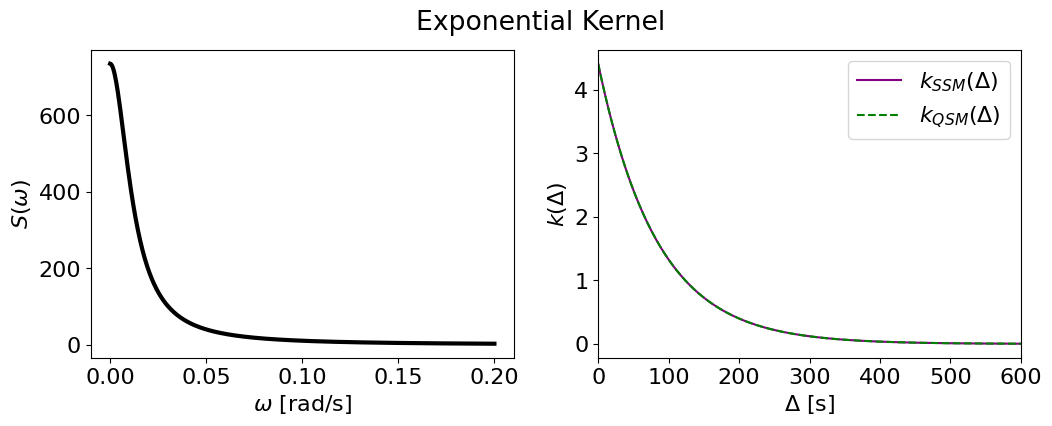

Exponential kernel (aka the Matérn-1/2)

sigma = 2.1
scale = 83.3

exp_smol = smolgp.kernels.Exp(scale=scale, sigma=sigma)
exp_tiny = tinygp.kernels.quasisep.Exp(scale=scale, sigma=sigma)
fig, axes = plot_psd_and_cov(exp_smol, exp_tiny, name='Exponential Kernel')

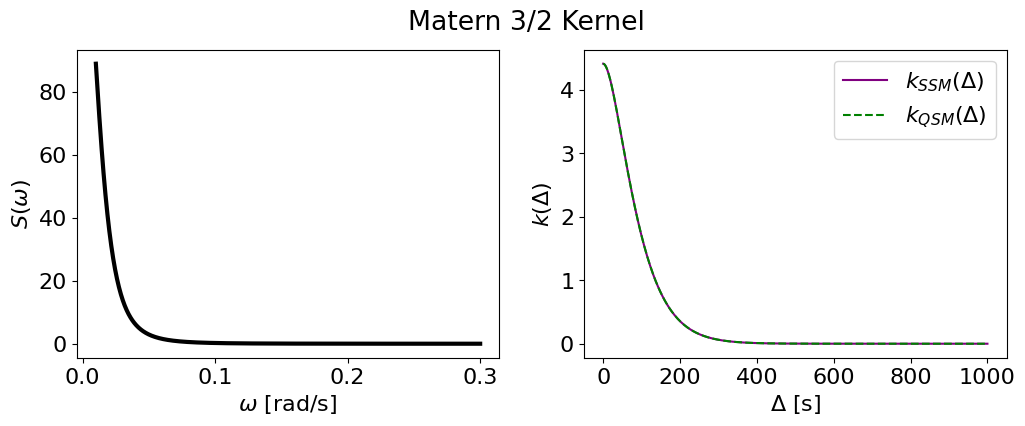

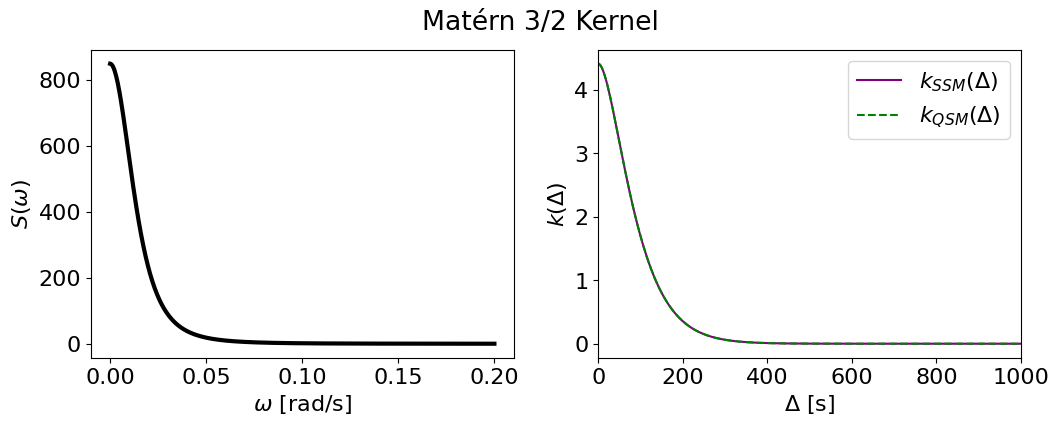

Matérn-3/2

sigma = 2.1
scale = 83.3

m32_smol = smolgp.kernels.Matern32(scale=scale, sigma=sigma)
m32_tiny = tinygp.kernels.quasisep.Matern32(scale=scale, sigma=sigma)
fig, axes = plot_psd_and_cov(m32_smol, m32_tiny, name='Matérn 3/2 Kernel')

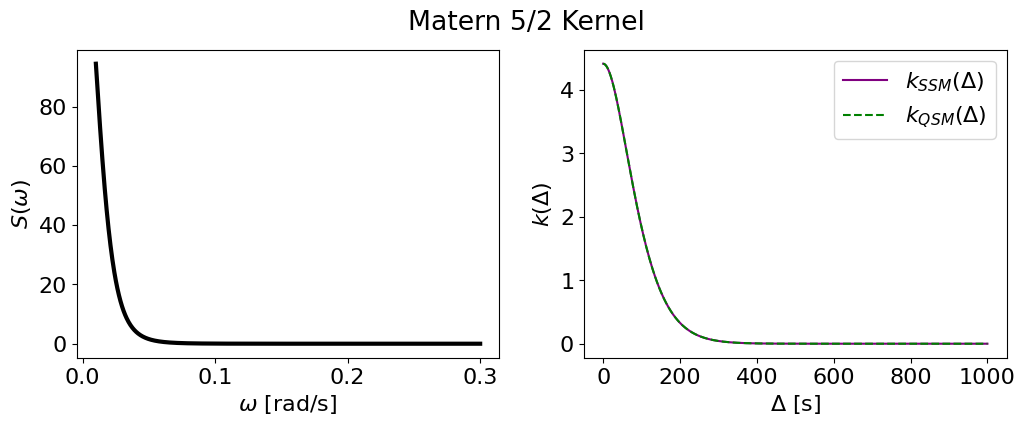

Matérn-5/2

sigma = 2.1
scale = 83.3

m52_smol = smolgp.kernels.Matern52(scale=scale, sigma=sigma)
m52_tiny = tinygp.kernels.quasisep.Matern52(scale=scale, sigma=sigma)
fig, axes = plot_psd_and_cov(m52_smol, m52_tiny, name='Matérn 5/2 Kernel')

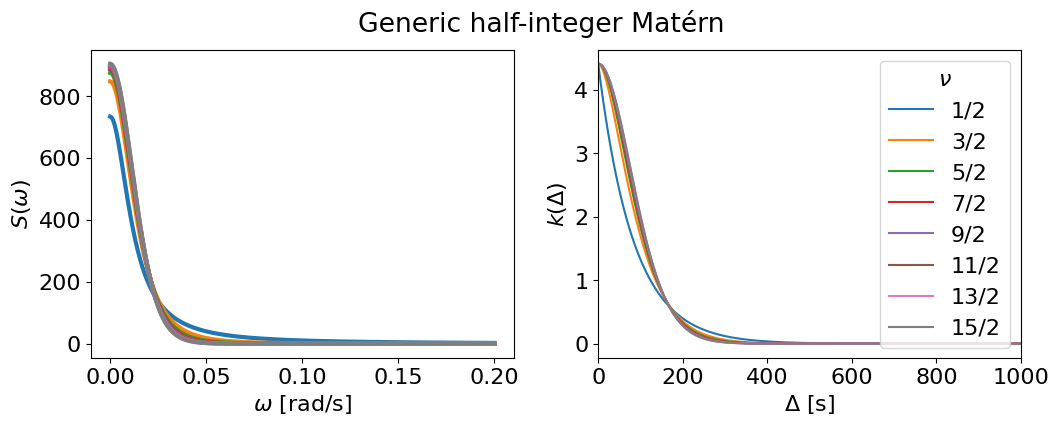

Generic half-integer Matérn

The generic half-integer Matérn kernel is also implemented, though because it relies on a numerical solver to the Lyapunov equation which is only implemented in scipy (and not jax.scipy), it will not be compatible with JIT/autodiff. This could change if we decide to write a JAX version if some use-case arises.

from unicodedata import name


sigma = 2.1
scale = 83.3
nus = ['1/2', '3/2', '5/2', '7/2', '9/2', '11/2', '13/2', '15/2']

fig, axes = plt.subplots(1,2, figsize=(12,4))
for nu in nus:
    v = float(eval(nu))
    matern = smolgp.kernels.Matern(nu=v, scale=scale, sigma=sigma)
    plot_psd(matern, ax=axes[0], color=f'C{int(v-0.5)}',)
    plot_cov(matern, ax=axes[1], color=f'C{int(v-0.5)}', label=f'{nu}')
fig.suptitle('Generic half-integer Matérn')
axes[1].legend(loc='upper right', title=r'$\nu$');

Warning: there does not seem to be a JAX implementation of solve_continuous_lyapunov, so we use the scipy version here for now. This means that this method will not be JIT-compilable.
Warning: there does not seem to be a JAX implementation of solve_continuous_lyapunov, so we use the scipy version here for now. This means that this method will not be JIT-compilable.
Warning: there does not seem to be a JAX implementation of solve_continuous_lyapunov, so we use the scipy version here for now. This means that this method will not be JIT-compilable.
Warning: there does not seem to be a JAX implementation of solve_continuous_lyapunov, so we use the scipy version here for now. This means that this method will not be JIT-compilable.
Warning: there does not seem to be a JAX implementation of solve_continuous_lyapunov, so we use the scipy version here for now. This means that this method will not be JIT-compilable.
Warning: there does not seem to be a JAX implementation of solve_continuous_lyapunov, so we use the scipy version here for now. This means that this method will not be JIT-compilable.
Warning: there does not seem to be a JAX implementation of solve_continuous_lyapunov, so we use the scipy version here for now. This means that this method will not be JIT-compilable.
Warning: there does not seem to be a JAX implementation of solve_continuous_lyapunov, so we use the scipy version here for now. This means that this method will not be JIT-compilable.

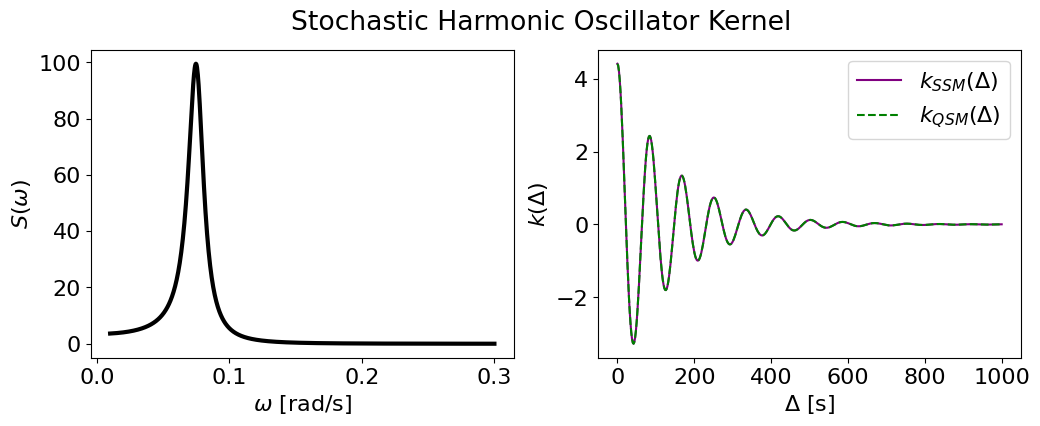

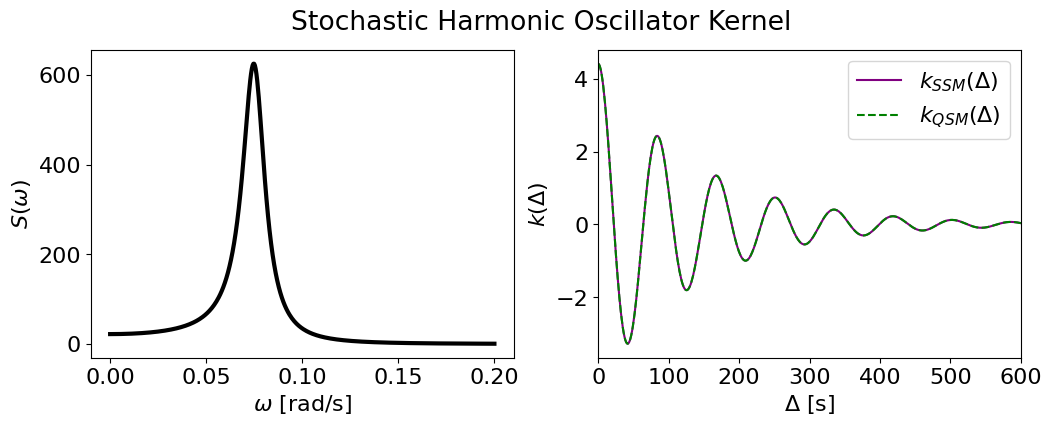

SHO

sigma = 2.1
omega = 2*jnp.pi/83.3
quality = 5.3 # underdamped
# quality = 0.5 # critically damped
# quality = 0.1 # overdamped

sho_smol = smolgp.kernels.SHO(omega, quality, sigma)
sho_tiny = tinygp.kernels.quasisep.SHO(omega, quality, sigma)
plot_psd_and_cov(sho_smol, sho_tiny, name='Stochastic Harmonic Oscillator Kernel');

Custom kernels

If you’d like to implement a state space model not already defined in smolgp, you can do so by creating an instance of a StateSpaceModel and defining the following functions:

Function	State space Matrix	Note
design_matrix	\(\boldsymbol{F}\)
stationary_covariance	\(\boldsymbol{P}_\infty\)
observation_matrix	\(\boldsymbol{H}\)
noise_effect_matrix	\(\boldsymbol{L}\)
noise	\(\boldsymbol{Q}_c\)
transition_matrix	\(\boldsymbol{A}\)	Optional: will default to numerical method if not defined
process_noise	\(\boldsymbol{Q}\)	Optional: will default to numerical method if not defined

For example, a CustomKernel with parameters param1 and param2 could be defined like so (with the functions filled in appropriately):

from tinygp.helpers import JAXArray
from smolgp.kernels import StateSpaceModel

class CustomKernel(StateSpaceModel):

    param1: JAXArray | float
    param2: JAXArray | float

    def __init__(
        self,
        param1: JAXArray | float,
        param2: JAXArray | float = jnp.ones(()),
        name: str = "CustomKernel",
        **kwargs,
    ):
        self.param1 = param1
        self.param2 = param2
        self.name = name

    def design_matrix(self) -> JAXArray:
        # Implement $F$ here
        pass

    def stationary_covariance(self) -> JAXArray:
        # Implement $P_\infty$ here
        pass

    def observation_matrix(self, X: JAXArray) -> JAXArray:
        # Implement $H$ at observation X here
        pass

    def noise_effect_matrix(self) -> JAXArray:
        # Implement $L$ here
        pass

    def noise(self) -> JAXArray:
        # Implement $Q_c$ here
        pass

    def transition_matrix(self, X1: JAXArray, X2: JAXArray) -> JAXArray:
        # Optional: define $Phi$ here if you can analytically
        pass

    def process_noise(self, X1: JAXArray, X2: JAXArray) -> JAXArray:
        # Optional: define $Q$ here if you can analytically
        pass

Arbitrary Kernels

Another benefit of the state space definition is, even for kernels which lack quasiseparability, if a kernel can be represented by a series expansion where each term does have a state space representation, we can build a SSM for an arbitrary kernel to arbitrary precision by summing such terms. In fact, we can always find such a suitable basis.

Example: The periodic kernel

The periodic kernel (also called the exponential-sine-squared kernel) has no exact quasiseparable representation, since its poles lie on the imaginary axis, giving a spectral density that is a sum of Dirac deltas rather than a rational function of frequency. However, Solin & Särkkä (2014) found a series representation for the periodic PSD at good approximation, which we have implemented in smolgp.kernels.ExpSineSquared. One can multiply this kernel by an exponential kernel to produce a good approximation to the canonical quasiperiodic kernel used throughout astronomy (see Multicomponent Kernels).

The periodic kernel has the following form in smolgp:

(1)\[\begin{align} k(\Delta) = \sigma^2 \exp\left(-\Gamma\,\sin^2(\frac{\pi \Delta}{P}) \right), \quad \Gamma = \frac{2}{\ell^2} \end{align}\]

One can specify exactly how many terms to include in the approximation using the order keyword, or leave this as None to let the code auto-select a reasonable number of terms given the parameter \(\ell = \sqrt{2/\Gamma}\) (using Figure 2c of Solin & Särkkä (2014) as a guide).

ell = 1.164 # 0.7
gamma = 2/ell**2
period = 163.3
sigma = 1.0 # tiny version doesn't have a sigma scaling built-in

periodic_smol = smolgp.kernels.ExpSineSquared(gamma=gamma, period=period, sigma=sigma, order=None)
periodic_tiny = tinygp.kernels.ExpSineSquared(gamma=gamma, scale=period)
print(f'Auto-selected {periodic_smol.order} terms based on `gamma`.')

Auto-selected 4 terms based on `gamma`.

We can see exactly what the upper bound on the error in the covariance will be with this many terms:

periodic_smol.error_bound()

Array(0.00584372, dtype=float64, weak_type=True)

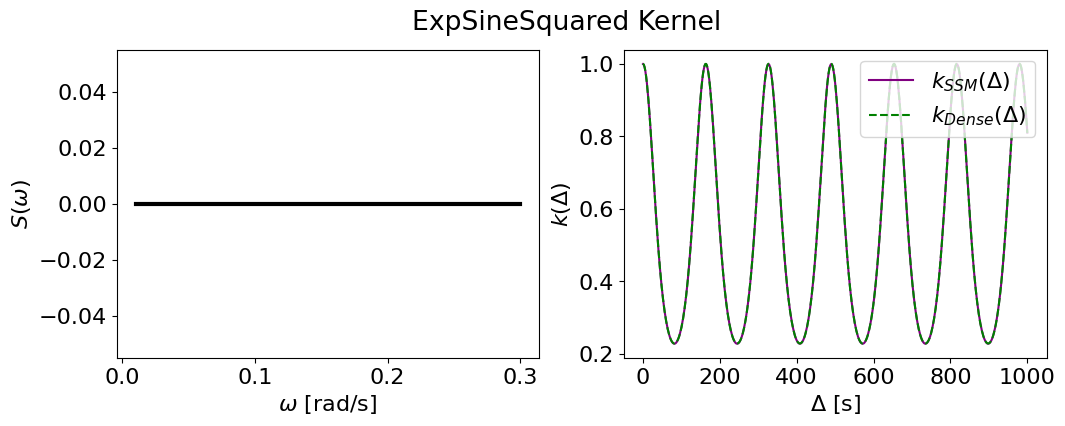

The periodic kernel will not have a defined PSD, as it is defined from the sum of terms with zero process noise. In other words, the PSD is not a continuous rational function but a sum of weighted Dirac delta functions (poles); this is precisely why it does not have its own quasiseparable or state space definition.

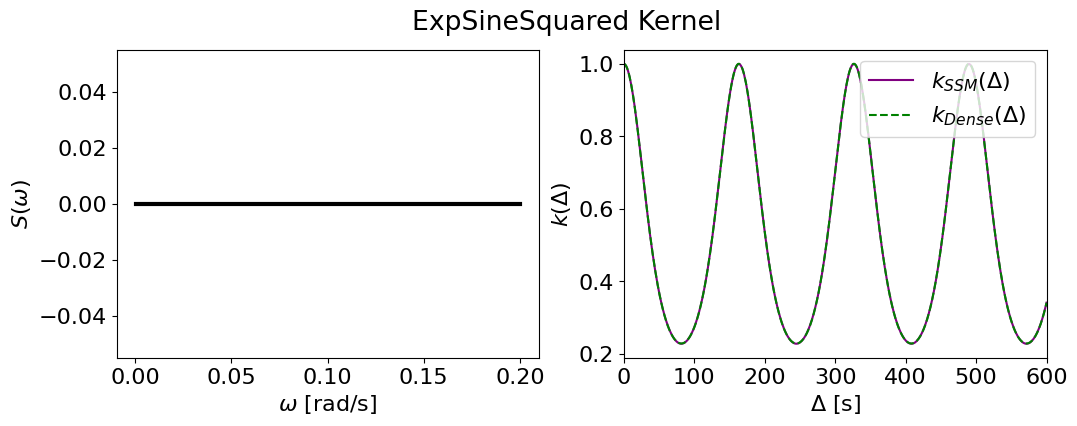

plot_psd_and_cov(periodic_smol, periodic_tiny, name='ExpSineSquared Kernel');

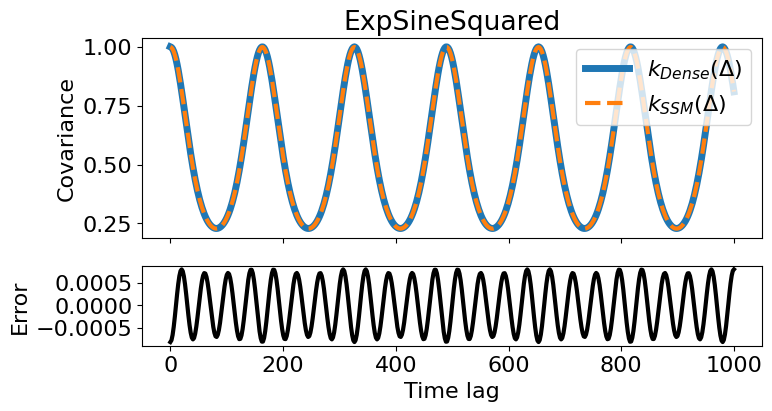

We can verify the error in our approximation is well below that error bound:

dts = jnp.linspace(0, 1000, 500)
zeros = jnp.zeros_like(dts)

cov_tiny = periodic_tiny(zeros, dts)[0,:]
cov_smol = periodic_smol(zeros, dts)[0,:]
res_cov = cov_smol - cov_tiny

fig, (ax, rax) = plt.subplots(2, 1, figsize=(8,4), sharex=True, gridspec_kw={'height_ratios': [3, 1.2]})
ax.set_title(f'{periodic_smol.__class__.__name__}')
ax.plot(dts, cov_tiny, label=r'$k_{Dense}(\Delta)$', lw=5, color='C0')
ax.plot(dts, cov_smol, label=r'$k_{SSM}(\Delta)$', lw=3, color='C1', ls='--')
ax.set_ylabel('Covariance'); ax.legend(loc='upper right')
eps = jnp.spacing(cov_tiny)
rax.plot(dts, res_cov, lw=3, color='k')
rax.set_ylabel('Error'); rax.set_xlabel('Time lag');

Verifying the likelihood, conditioning, and predictions for the ExpSineSquared kernel

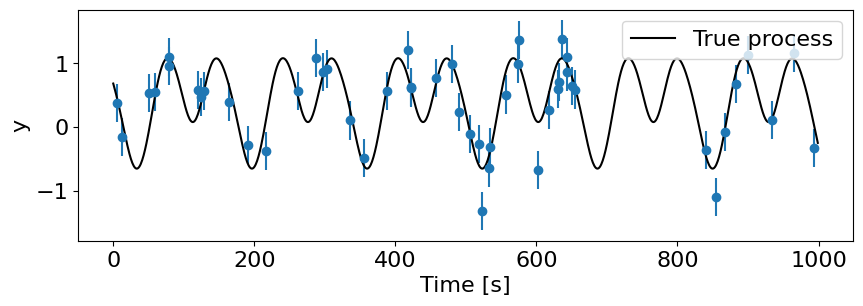

Let’s generate some mock data from a periodic process and run through the full GP regression to see how well we do with our approximated SSM definition.

# Mock data
t_train  = jnp.sort(jax.random.uniform(key, (50,), minval=0, maxval=1000))
yerr = 0.3 * jnp.ones_like(t_train)

# True process
t_true = jnp.arange(0, 1000, 1)
true_gp = smolgp.GaussianProcess(periodic_smol, jnp.concat((t_true, t_train)))

# Sample data from the true process
y_sample = true_gp.sample(key=jax.random.PRNGKey(32))
y_true = y_sample[:len(t_true)]
y_train = y_sample[len(t_true):] + yerr * jax.random.normal(key, t_train.shape)

# Define the GPs
gp_smol = smolgp.GaussianProcess(kernel=periodic_smol, X=t_train, noise=yerr**2)
gp_tiny = tinygp.GaussianProcess(kernel=periodic_tiny, X=t_train, diag=yerr**2)

# Plot the data and true process

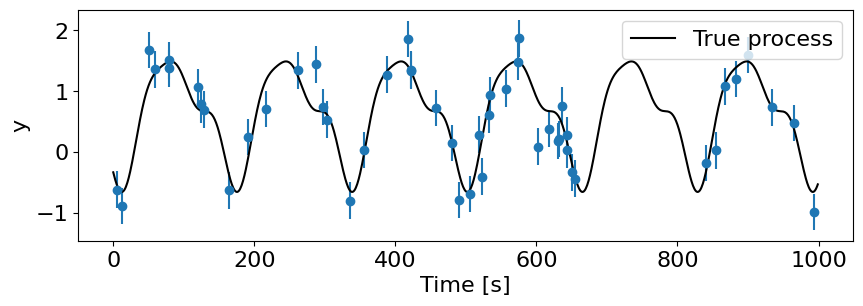

plt.figure(figsize=(10, 3))
plt.errorbar(t_train, y_train, yerr=yerr, fmt="o", markeredgecolor='C0', markersize=6, capsize=0)
plt.plot(t_true, y_true, "-k", label="True process")
plt.xlabel('Time [s]'); plt.ylabel('y'); plt.legend(loc='upper right');

offset = jnp.finfo(jnp.array(0.)).eps

print(f'Testing {periodic_smol.name}\n')

## Likelihoods
print('Log-likelihoods:')
llh_smol = gp_smol.log_probability(y_train)
llh_tiny = gp_tiny.log_probability(y_train)
llh_diff = llh_smol - llh_tiny
print(f"   smolgp: {llh_smol:f}")
print(f"   tinygp: {llh_tiny:f}")
print(f"   Difference: {llh_diff:.3e}  ({llh_diff/llh_tiny*100:.1f}%)")

## Conditioning
print('\nConditioning GPs on data...')
llh_tiny2, condGP_tiny = gp_tiny.condition(y_train, t_train)
llh_smol2, condGP_smol = gp_smol.condition(y_train)
mean_diff = condGP_tiny.loc - condGP_smol.loc
var_diff  = (condGP_tiny.variance-offset) - condGP_smol.variance
print(f'   Mean max abs diff: {jnp.max(jnp.abs(mean_diff)):.3e}  ({jnp.max(jnp.abs(mean_diff))/jnp.max(jnp.abs(condGP_smol.loc))*100:.1f}%)')
print(f'   Variance max abs diff: {jnp.max(jnp.abs(var_diff)):.3e}  ({jnp.max(jnp.abs(var_diff))/jnp.max(jnp.abs(condGP_smol.variance))*100:.1f}%)')

## Predictions
print('\nPredictions at new points:')
t_test = jnp.linspace(0, 1000, 1000)
mu_tiny, var_tiny = gp_tiny.predict(y_train, t_test, return_var=True)
mu_smol, var_smol = condGP_smol.predict(t_test, return_var=True)
pred_mean_diff = mu_tiny - mu_smol
pred_var_diff  = (var_tiny - offset) - var_smol
print(f'   Mean max abs diff: {jnp.max(jnp.abs(pred_mean_diff)):.3e}  ({jnp.max(jnp.abs(pred_mean_diff))/jnp.max(jnp.abs(mu_smol))*100:.1f}%)')
print(f'   Variance max abs diff: {jnp.max(jnp.abs(pred_var_diff)):.3e}  ({jnp.max(jnp.abs(pred_var_diff))/jnp.max(jnp.abs(var_smol))*100:.1f}%)')

Testing ExpSineSquared

Log-likelihoods:
   smolgp: -23.082149
   tinygp: -23.190214
   Difference: 1.081e-01  (-0.5%)

Conditioning GPs on data...
   Mean max abs diff: 9.089e-03  (0.6%)
   Variance max abs diff: 1.541e-03  (9.4%)

Predictions at new points:
   Mean max abs diff: 1.146e-02  (0.7%)
   Variance max abs diff: 1.748e-03  (10.0%)

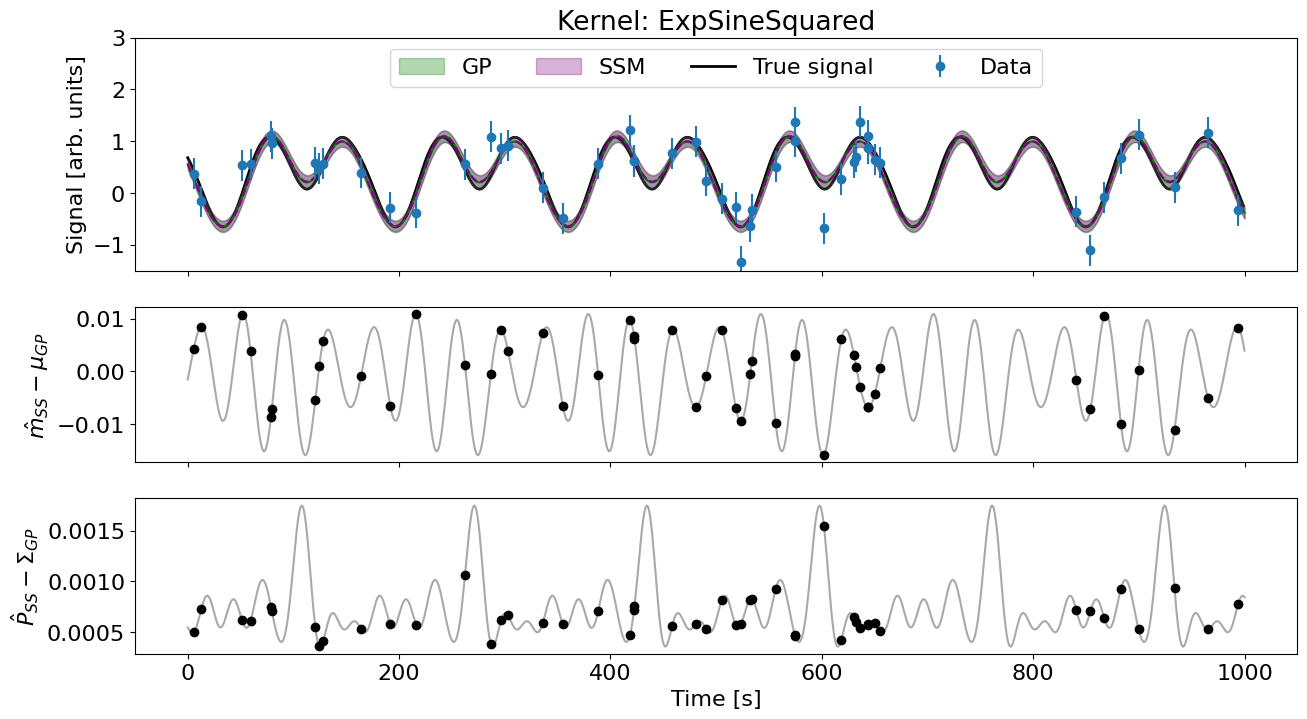

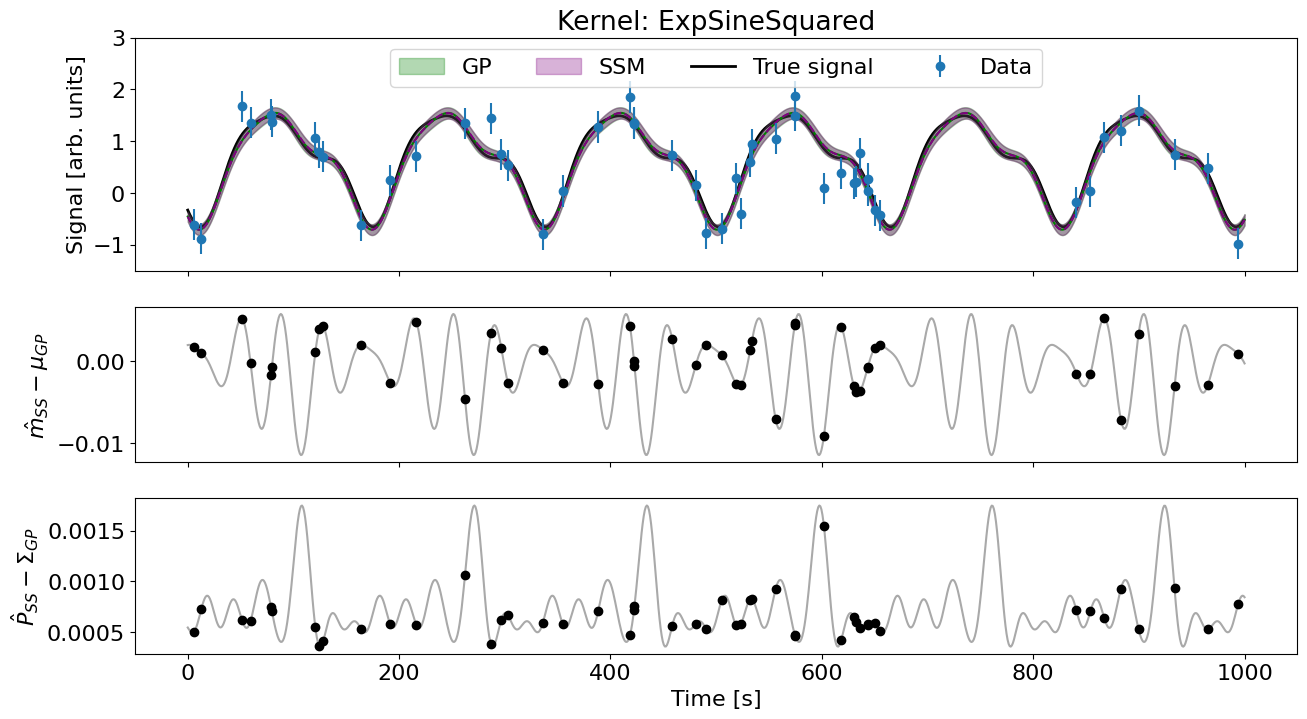

## Plot
fig, (ax, rax, rrax) = plt.subplots(3,1, figsize=(15,8), sharex=True,
                                    gridspec_kw={'height_ratios':[1.5,1,1]})

## Predictions
ax.plot(t_test, mu_tiny, color='green')
ax.plot(t_test, mu_smol, color='purple', ls='--')
ax.fill_between(t_test, mu_tiny-jnp.sqrt(var_tiny), mu_tiny+jnp.sqrt(var_tiny), alpha=0.3, color='green', label='GP')
ax.fill_between(t_test, mu_smol-jnp.sqrt(var_smol), mu_smol+jnp.sqrt(var_smol), alpha=0.3, color='purple', label='SSM')
ax.set(ylabel='Signal [arb. units]', title=f'Kernel: {periodic_smol.name}', ylim=[-1.5,3])

## Data and true signal
ax.plot(t_true, y_true, label='True signal', color='k', lw=2, zorder=-10)
ax.errorbar(t_train, y_train, yerr, fmt='o', color='C0', label='Data', alpha=1)
ax.legend(ncol=4, loc='upper center')

## Mean residuals
rax.scatter(t_train, mean_diff, color='k', zorder=100)
rax.plot(t_test, pred_mean_diff, color='darkgrey')
rax.set(ylabel=r'$\hat{m}_{SS}- \mu_{GP}$')

## Var residuals
rrax.scatter(t_train, var_diff, color='k', zorder=100)
rrax.plot(t_test, pred_var_diff, color='darkgrey')
rrax.set(ylabel=r'$\hat{P}_{SS}- \Sigma_{GP}$')
rrax.set_xlabel('Time [s]');

Pretty good for all intents and purposes!

Other kernels

Other kernels may be implemented in the future, such as an approximation to the RBF kernel (also called the squared-exponential kernel) as described by Hartikainen & Särkkä (2010). Raise a Github issue (or a pull request 😉) if you’d like that functionality.
